unihelm inflatable boat seat specifications, seats, seating and steering options

Shipping extra. Contact us for a shipping quote to your location before ordering.

Product	Price	Description	Buy Now
Complete Unihelm System - 29" wide cushion	$1,195.00	Base frame, cushion, steering helm, wheel, cable, control mount plate.

Complete Unihelm System - 31" wide cushion	$1,195.00	Base frame, cushion, steering helm, wheel, cable, control mount plate.

Bench Seat Only - 29" wide cushion	$798.00	Base frame and cushion only, without steering configuration

Bench Seat Only - 31" wide cushion	$798.00	Base frame and cushion only, without steering configuration

32" Seat Upgrade - to complete system or bench only	$36.00	32" seat upgrade for a wider seat cushion

35" Seat Upgrade - to complete system or bench only	$36.00	35" seat upgrade for a wider seat cushion

V48 stainless steel wheel upgrade	$24.00	V48 stainless steel wheel upgrade

Wheel guard handrail	$160.00	Wheel guard handrail for grasping when in use

Perko light bracket	$60.00	Perko light bracket to mount your port/stbd - red/green lights to

Snap Toggle	$1.00	Snap toggle to help you mount the unit into your deck

Toggle Switch	$46.00	Toggle switches for your electrical switch needs

View your shopping carts contents here and complete your transaction by clicking "View Cart" and checking out.
Ordering Instructions 29" or 31" Wide Complete System or Bench Seat Only - Order either the "complete system" or the "bench seat only" in your choice of 29" or 31" using the *Add to Cart* buttons above. 32" or 35" Seat Width Upgrade - For a wider seat cushion, order either the "complete system" or the "bench seat only" using the 29" Add to Cart button above ,and then also order either the 32" or the 35" "seat upgrade", using the *Add to Cart* buttons above. Ordering Notes * Does not include shipping fees. Shipping extra. Contact us for a shipping quote to your location before ordering. Shipping is approximately 10-20 days subject to inventory of your exact model and your location. * All prices in US dollars.

Is Your Boat On Our List Of Boats We Have Patterns For?
If your boat IS ON this list, then proceed to order using our secure online purchasing process below.
If your boat IS NOT ON this list, then you must follow these instructions below to take some measurements so we may help accurately build your Unihelm to fit perfectly into your RIB.

Please follow the measurement instructions listed below. Each Unihelm is built to exact specifications to match the deadrise and interior dimensions of each boat. The measurements are easy to make using a cardboard pattern, (that we can supply by mail if desired) or you can make the measurements without the pattern and simply call them in or email us the dimensions.

Use the 24" x 15" cardboard to accurately measure your boat. Set it in the bottom of the boat where the Unihelm will mount. The template is the same width as the Unihelm mounting plates. (See pictures at very bottom of this page). Center the template from side to side in the boat. Measure from the side of the template to the inside center of the tube using a 12", or longer, ruler and write the measurement on the line for that dimension (see drawing 1 below). The template is the same height as the top of the "standard" Unihelm seat cushion. This allows us to build the Unihelm so it doesn't touch the inflatable tubes on either side. Note number on the top of the template or call in or email us your dimensions.

Deck Style (see drawing 1 below). Pick the drawing below that most closely matches your boat's deck style. Note number on the top of the template or call in or email us your dimensions.

For boat style #1, some users, simply order the standard Unihelm and build angled shims to wedge under the base metal to account for the angle of their deck. Others simply bolt the standard Unihelm onto their angle deck ensuring it achieves a secure attachment.

For boat style #2, tell us what the width of usable flat deck area is. (Where the flat floor ends and the angle of the deck begins)

For boat style #1 & #2, to achieve the angle of the deck areas, if required, punch out the two small perforated cardboard strips from the middle of the supplied template. Place the cardboard strips flush to the bottom of the hull equal distance from the centerline of the template. Scribe outline of the small cardboard strips with a pencil for an exact measurement of the deck angle. (See drawing 2 below).

If you're unsure, call us and we can discuss this in more detail with you. If you understand these clearly, you can simply email or call in your dimensions, particularly if you have boat style #3 or 4.

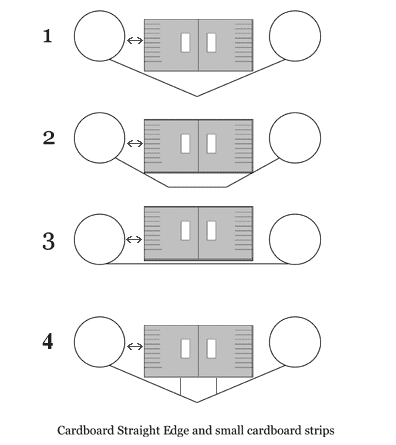

Drawing 1

Drawing 2
