CMC Power Tilt & Trim Products
- A Market Leader in Transom Jacks and After Market Tilt and Trims! -

We are an authorized dealer, and one of the largest, of CMC manufacturing.


We offer 2 models of Power Tilt & Trim Products:



PT-35 Hydraulic Tilt & Trim

The PT-35 is a lighter, more compact Tilt and Trim unit manufactured for 35 horsepower motors and smaller(Down to 2 H.P.). This unit is 11-1/2 inches wide and weighs only 27 lbs shipping weight!

power tilt and trim unit

Click here for more details.

PT-130 Electric Hydraulic Tilt and Trim

The PT-130 will fit on virtually any type of boat and outboard motor. Rated for 10H.P. through 130H.P. motors. Fits standard B.I.A. bolt pattern motors without drilling holes. Approximately 48lbs shipping weight.

power tilt and trim unit

Click here for more details.

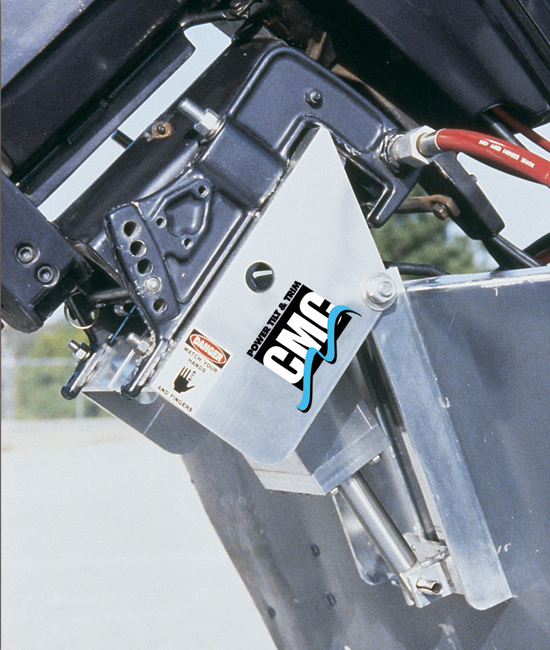

PT-35 Hydraulic Tilt & Trim

Hydraulic tilt & trim with no castings or welds to break. Don't settle for less quality imitations!
Save your back from stress with the new PT-35. The PT-35 is a lighter, more compact Tilt and Trim unit manufactured for 35 horsepower motors and smaller(Down to 2 H.P.). This unit is 11-1/2 inches wide and weighs only 24 lbs! The PT-35 utilizes the same hydraulic actuator as the PT-130 and gives you all the same benefits. This unit easily adapts to bolt-on motors and clamp-on motors (*within the 11 inch frame) without the need of an adapter.

power tilt and trim
Click picture to to enlarge

Experience Convenience & Improved Performance
The PT-35 incorporates a 5 1/2 inch setback, which enhances boat stability and enables the prop to get a better "bite" at a higher prop setting. With the touch of a switch you can raise your motor to protect your prop from damage and your back from strain. It has a total of 84 degrees of trim and tilt. It allows you to tuck your motor in to get your boat on plane smoother and faster. When you're underway, you can change the angle of your motor to obtain the best performance for your load and water conditions. It gives you a more stable ride, increases top end speed, more prop clearance and better fuel efficiency.

power tilt and trim

* The inside dimensions of the motor mounting area of the PT-35 is 11 inches. Before ordering, please make sure that the maximum width of the clamp mounting feet and/or mounting bolts of the motor that must fit in this area does not exceed this 11 inch limit.

PT-35 Tilt and Trim Unit (gauge not available) (PN: 52100)
Shipping weight approximately 30 lbs.
$529

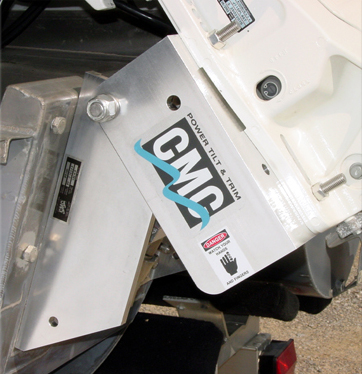

PT-130 Electric Hydraulic Tilt and Trim

power tilt and trim unit
Click picture to to enlarge

Experience Convenience & Improved Performance
The PT-130 incorporates a 6" setback which enhances Boat Stability and enables the prop to get a better "bite" at a higher prop setting. With the touch of a switch you can raise your motor to protect your prop from damage and your back from strain. The PT-130 has 20 degrees of trim and 90 degrees of trim and tilt. It allows to tuck your motor in to get your boat on plane smoother and faster. When you're underway, you can change the angle of your motor to obtain the best performance for your load and water conditions. It gives you a more stable ride, increases top end speed, allows more prop clearance, and better fuel economy.

Superior Construction
The PT-130 is a computer aided design, our commitment to quality and manufacturing excellence is evident in every product we make. The PT- 130 is constructed of 1/2" 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners for maximum strength and durability. No molded aluminum which has less resistance to stress. This system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.

Most Powerful On The Market
The PT-130 is actuated with a totally waterproof marine electric hydraulic System that is rated OVER 7800 lbs. OF THRUST! Over 40% more powerful than other brands. It is also more impervious to saltwater and freshwater than others because it is made of 100% non ferrous materials. Our hydraulic system is completely sealed and submersible and runs without worry of water damage. No electromechanical ball screw !

Ideal For Any Type Of Boat
The PT-130 will fit on virtually any type of boat and outboard motor. The PT-130 along with the optional trim gauge makes it very easy to know the exact angle of your motor. It's especially convenient on pontoon boats. Rated for 10H.P. through 130H.P. motors, it fits standard B.I.A. bolt pattern motors without drilling holes. A convenient adapter kit is available for motors that are mounted with transom clamps.

 *Mounting Hardware Included With Every PT-130

power tilt and trim unit with Mercury outboard

PT-130 Tilt and Trim Unit (with gauge) (PN:13001)
Shipping weight approximately 48 lbs.
$699


PT-130 Tilt and Trim Unit (without gauge) (PN:13002)
Shipping weight approximately 46 lbs.
$599

spacers

transom clamp adaptors

Transom Spacer for Pontoon Boat (PN: 13032)

The Transom on some pontoon boats are inset with an aluminum lip along the sides. To conveniently mount the PT-130 to this type transom, this transom spacer is available. The transom spacers are 1" thick allowing you to mount the PT-130 without interference with the 1/2" to 3/4" lip around the transom on some pontoon boats. Must be purchased with the PT-130.

$45
Shipping weight approximately 9 lbs.

Transom Clamp Motor Adapter (PN:13022)

For installation of motors mounted with transom clamps, an adapter kit is available from CMC. This adapter kit is made for quick and easy installation of these type motors. The photo above shows this adapter on a PT-130 with a transom clamp motor. Must be purchased with the PT-130.

$69
Shipping weight approximately 12 lbs.
