CMC Hydraulic Power-Lifts
- A Market Leader in Transom Jacks and After Market Tilt and Trims! -

We are an authorized dealer, and one of the largest, of CMC manufacturing.

PL-65 Electric Hydraulic Transom Jacks

Improved Performance For All Outboards

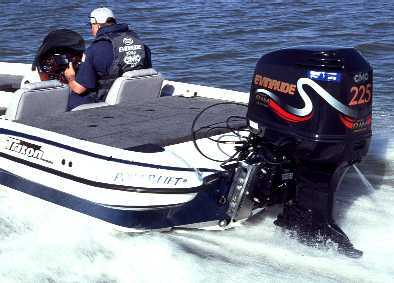

The Power-Lift can improve the performance of virtually any type outboard. This unique outboard motor hydraulic lifting device works independently of your power trim and tilt to allow the boat-motor-prop combination to work at it's maximum efficiency. The Power-Lift gives you the ability to adjust your motor down, for better out of the hole shots or up for better top end speed, better fuel efficiency, and more prop clearance in shallow water. With the touch of a switch the Power-Lift makes it easy to find that optimum height for any condition while underway at full speed! Ideal for ski, bass, or work boats. In order for your outboard to perform at its full potential and efficiency, it should be adjusted to different heights at different speeds, water conditions and loads in your boat. The Power-Lift will set your motor back away from the transom 5 1/2 inches which allows the prop to run in "cleaner" water giving the prop a better "bite" and eliminating prop slippage. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater use.

NEW

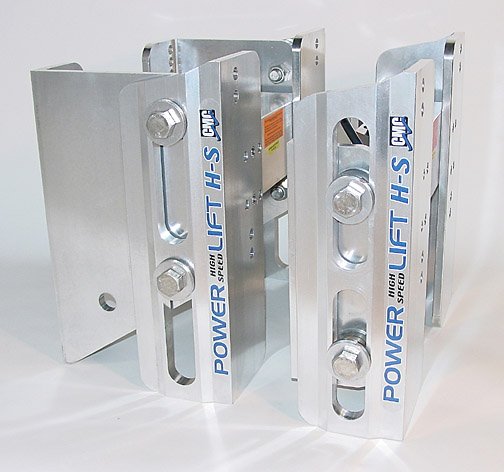

CMC now offers a new "high-speed" Power-lift - the PL65HS in 5 1/2" and 10" setbacks. See below for details, prices and ordering.


Review all product prices and order below.


Click photos to view large pictures of the new high-speed units.

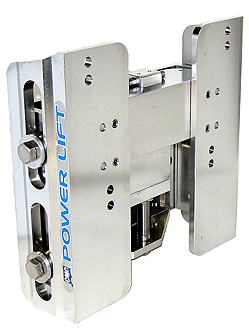

Model PL-65 (PN: 65001)
hydraulic power lift

hydraulic power lift

hydraulic power lift
Click picture to to enlarge

Superior Design And Construction
Superior quality has made the Power-Lift the #1 selling transom jack in the world! We have been manufacturing top quality transom jacks longer than most of our competitors have been in business. No short cuts are taken at CMC. Computer aided design and precision machining of the Power-Lift is done totally at our facility so you can be sure to get the best quality transom jack at a very competitive price. The Power-Lift utilizes a totally waterproof 12 volt DC marine hydraulic system that is rated OVER 7800 Pounds of thrust. More lifting capacity than any other transom jack on the market. It is 40% more powerful and much more dependable than electro-mechanical transom jacks on the market. The motor bracket moves up and down on a transom bracket by use of rollers Machined from aluminum-bronze alloy. These rollers are highly impact resistant, Corrosive resistant, and have a high load carrying capacity. Thrust is eliminated by the stainless steel pin through this roller with a self lubricating non-metallic material (G.S.M. Nylatron) used for thrust guides on either side of the rollers. This feature eliminates any vibration or "shimmy" due to load applied from high powered outboards. This patented design virtually eliminates any chance of binding, which is common with other transom jacks.

1. Features Of Patented Hydraulic Power-Lift®   (U.S. Patent 4,482,330)
Made of 1/2 inch 6061 T6 alloy aluminum extrusions and fastened with stainless steel fasteners. Ideal for fresh or salt water use. No welds or castings to break.

2. The dependable self contained and water proof hydraulic actuator has a lifting capacity of 7853 pounds of thrust. More than any other transom jack. You will have no problem lifting even a V-8 motor at full throttle. The hydraulic actuator is mounted inside the structure of the Power-Lift, yet it is fully accessible without removing the engine. There are no hoses to contain, nor will you have to contend with mounting a pump and reservoir inside your boat, as is the need with other transom jacks. The hydraulic actuator is completely self-contained with its own fluid reservoir (eliminates the need for hydraulic tank and hoses inside the boat). It contains a permanent magnet motor for more power and R.P.M.. The cylinder within the actuator has twice the lifting capacity than other transom jacks on the market. It contains a no-leak seal and wiper seal that keeps dirt and water out of the working parts. The system is made of 100% non-ferrous material which makes it impervious to saltwater and freshwater.

3. The patented roller design means less friction, longer wear, less maintenance, and virtually no binding problems which are common with other transom jacks. The roller assembly contains a stainless steel 3/4" pin with aluminum-bronze alloy rollers. The roller is highly impact resistant, corrosive resistant, and has a high load carrying capacity. This patented design virtually eliminates ny chance of binding which is common with other transom jacks.

Our most popular model, the PL-65 is rated for V-6 motors and smaller and gives you 5" of vertical travel with 1-1/2" of adjustment on the motor bracket and 1-1/2" of adjustment on the transom bracket. A TOTAL OF 8" OF POSSIBLE ADJUSTMENT! It also can be purchased with stainless steel motor rails, Model PL-65SS (for V-8 motors).

Get the performance you deserve from your older rig and don't even consider a new rig without a CMC Power-Lift as an absolute part of your option package. Join the thousands of satisfied CMC Power-Lift Users.

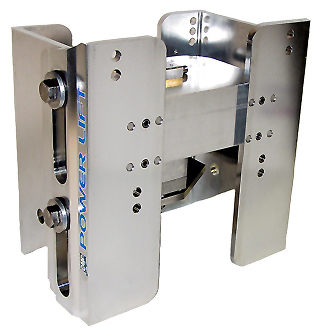

PL-65 now also comes in 10" setback (PN: 61001) - see below
PL-65 with 10
Click picture to to enlarge

PL-65 with 5 1/2" of Setback - Order Here

Model PL-65 (PN: 65001)
 **Hot seller**
5 1/2" setback, hydraulic with gauge
Shipping weight approximately 55 lbs.
$929

Model PL-65 (PN: 65002) **Hot seller**
5 1/2" setback, hydraulic without gauge
Shipping weight approximately 53 lbs.
$779

Model PL-65SS for V-8 (PN: 65201)
5 1/2" setback, hydraulic with gauge
(SS motor rails for V-8 )
Shipping weight approximately 74 lbs.
$1,799

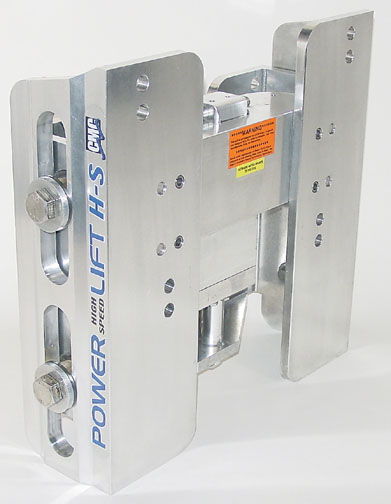

NEW - High Speed PL-65 with 5 1/2" of Setback - Order Here

New - High Speed Unit
Model PL-65HS  (PN: 65301)
5 1/2" setback, hydraulic with gauge
Shipping weight approximately 55 lbs.
$939


New - High Speed Unit
Model PL-65HS  (PN: 65302)
5 1/2" setback, hydraulic without gauge
Shipping weight approximately 55 lbs.
$789


PL-65 with 10 " of Setback - Order Here

Model PL-65 (PN: 61001)
10" setback, hydraulic with gauge
Shipping weight approximately 70 lbs.
$979

Model PL-65 (PN: 61002)
10" setback, hydraulic without gauge
Shipping weight approximately 68 lbs.
$849


NEW - High Speed PL-65 with 10" of Setback - Order Here

New - High Speed Unit
Model PL-65HS (PN: 61301)
10" setback, hydraulic with gauge
Shipping weight approximately 70 lbs.
$999

New - High Speed Unit
Model PL-65HS (PN: 61302)

10" setback, hydraulic without gauge
Shipping weight approximately 68 lbs.
$859

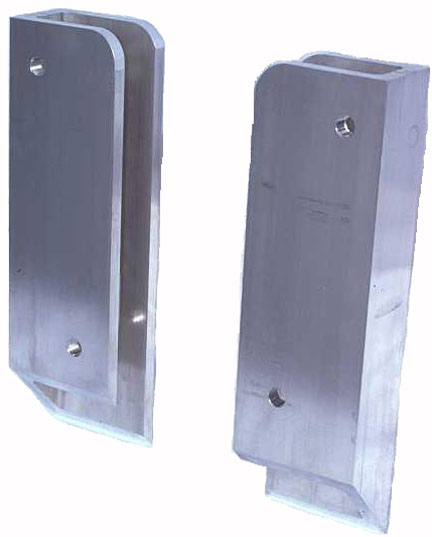

Add an optional 2 1/2" spacer plate to the 5 1/2" model to give you 8" of total setback.
(Not Sold Separately. Sold only with the purchase of a transom jack from Allinflatables.com)
2 1/2
Click picture to to enlarge

For Model PL-65 or ML-65 (PN: 65213)
2 1/2" static setback spacer plate
Shipping weight approximately 13 lbs.
$99

engine lift

*Mounting Hardware Included With All CMC Power-Lifts

REVIEW THIS COMPETITIVE ANALYSIS



Return policy: There is a 15% restocking fee on returned items.
Our original freight costs are also not refundable.





Compare shop and save $$ with us.

When comparison shopping don't forget to add in their shipping and handling fees to their prices to get the FULL price.
